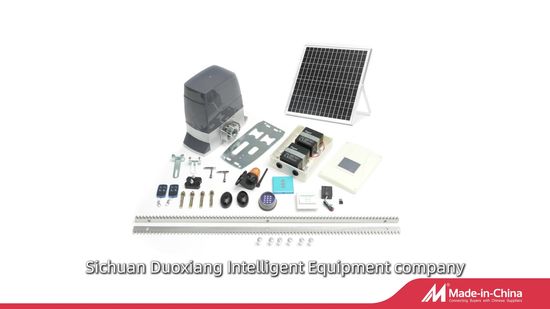

Automatic Sliding Gate Opener 24V BG Series with Soft Start/Stop Function
Professional automatic sliding gate opener systems designed for reliable, quiet operation with advanced safety features.
Key Features
- Ultra-quiet operation suitable for frequent opening and closing cycles
- Soft start and soft stop functionality for smooth operation
- Automatic rebound when obstruction is detected
- Master-slave connection capability for dual gate systems
- Optional battery backup and solar power support
- Remote and mobile app control compatibility

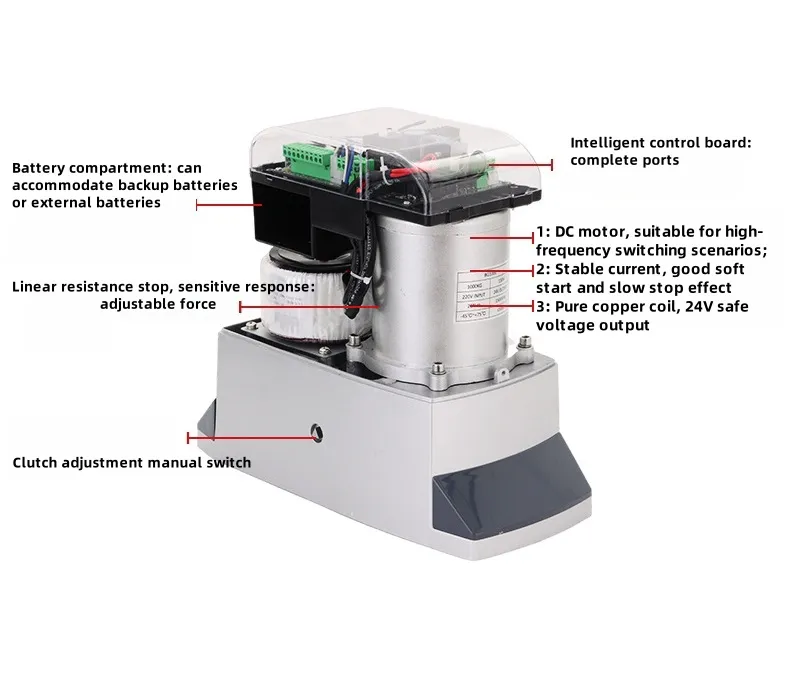

- Complete motor systems with independently designed circuit boards
Technical Specifications
| Model |
BG800 |
BG1000 |
BG1500 |
BG2000 |
BG2500 |
| Max Gate Weight |
800KG |
1000KG |
1500KG |
2000KG |
2500KG |
| Rated Power |
110W |
130W |
180W |
280W |
350W |
| Load Speed |
12m/min |
| Input Power |
AC220V/110V±10% |
| Output Power |
DC24V |
| Limit Switch |
Spring Limit/Magnetic Limit |
| Noise Level |
≤50dB |
| Working Temperature |
-30℃~+65℃ |
| IP Class |
IP55 |
Packaging & Delivery
Premium Construction Features
- Aluminum alloy shell with standardized material selection for high-quality performance
- Rust-proof stainless steel gears for durability and corrosion resistance
- Backup power supply capability for operation during power outages
Manufacturer Profile
Sichuan Duoxiang Intelligent Equipment Co., Ltd. is a technology-based enterprise with independent R&D and production capabilities.
For decades, we have specialized in access control systems and smartphone access control solutions. Our product range includes high-quality DC sliding door motors covering brushless DC motors, DC series motors, and AC series motors with load capacities from 800kg to 6500kg, suitable for both residential and industrial applications.
Our motors feature excellent soft-start, soft-stop performance and include both standard and high-speed models. As a leading enterprise in the Chinese DC sliding door motor market, we hold numerous patents including a globally unique electronic limit switch.
We provide OEM/ODM services and are committed to delivering high-quality products while helping partners expand their businesses and users achieve smarter access control solutions.
Frequently Asked Questions
- Inventory Availability: Sufficient inventory maintained with 100 sets of each product type in neutral packaging
- Delivery Time: Ships same day or next day after payment receipt
- Customization Options: Free logo customization for orders over 20 sets; free outer packaging customization for orders over 100 sets
- After-Sales Service: One-year warranty from receipt date; free accessories during warranty period (excluding shipping); free technical support
